Let’s setup Portado !!!!!!!

Overview

Portado is a flavour of Apache Guacamole. Apache Guacamole is a clientless remote desktop gateway that allows users to access their desktops and servers from a web browser, without needing to install any software or plugins. It supports standard remote access protocols such as VNC, RDP, and SSH.

  • Guacamole Client (Web App):

    • Written in HTML5 and runs in a browser.

    • Acts as the front end for users to connect to remote machines.

  • Guacamole Server (guacd):

    • A daemon that handles the communication between the web app and remote desktop protocols like VNC/RDP/SSH.

    • Acts as a proxy, translating between the browser and the remote service.

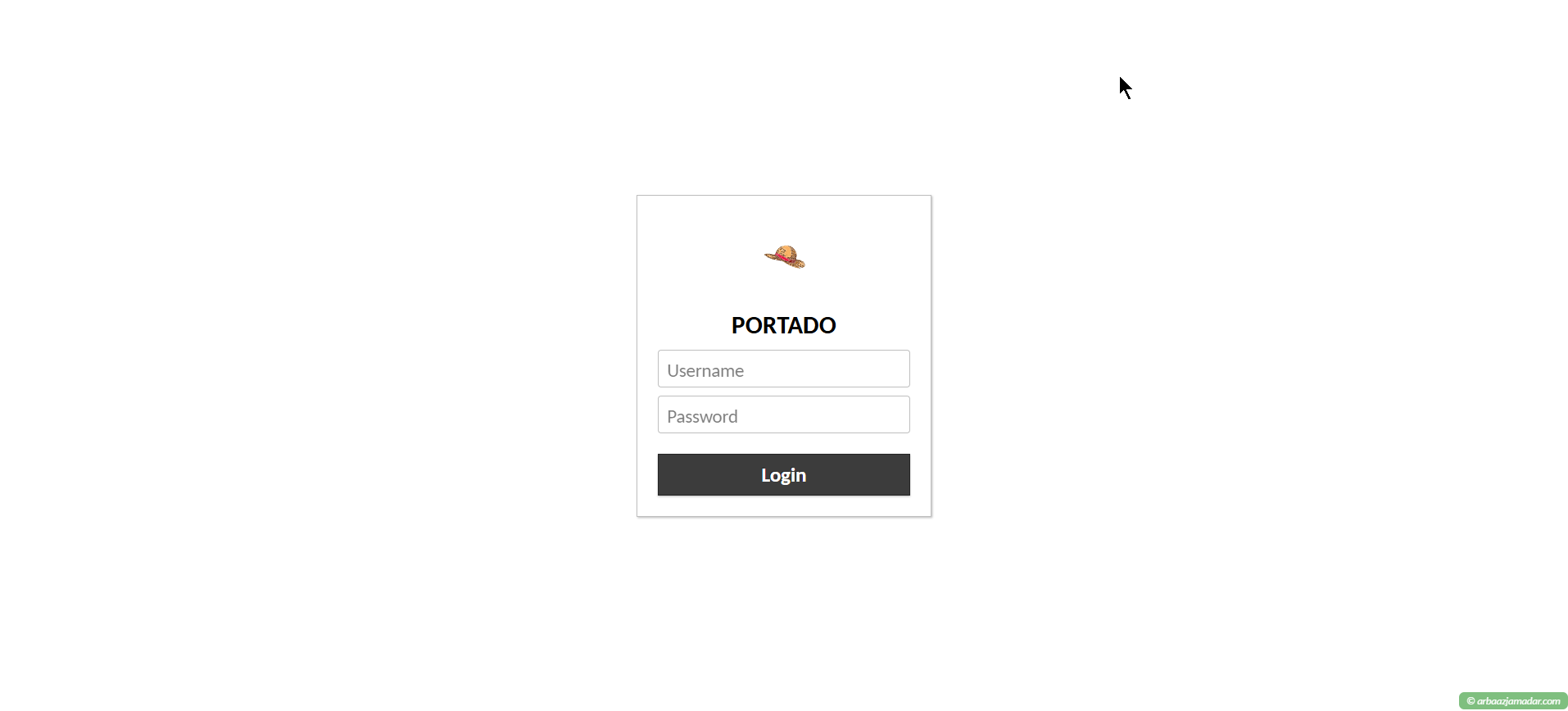

  • Users access Guacamole through a URL, log in, and can manage or access their remote systems all from the browser.

portadoo

Features

  • Clientless Access

    • No plugins or clients needed; access is entirely browser-based using HTML5.

  • Secure Remote Access

    • Guacamole can be hosted behind a VPN or exposed securely over HTTPS.

    • Supports multi-factor authentication (MFA) via extensions or LDAP/DUO integrations.

  • Cross-Platform

    • Works on any device with a modern browser, including smartphones and tablets.

  • Protocol Support

    • RDP (Remote Desktop Protocol)

    • VNC (Virtual Network Computing)

    • SSH (Secure Shell)

    • Support for file transfer (SFTP in SSH, clipboard, drive redirection with RDP).

  • Multi-user Management

    • Role-based access with user/group permissions.

    • Integrates with LDAP, CAS, SAML, or MySQL authentication systems.

  • File Transfer and Clipboard Sharing

    • Upload/download files during a session.

    • Share clipboard contents between local and remote machines.

  • Session Recording

    • Record user sessions for auditing or training purposes (configurable).

  • Custom Extensions

    • Extend functionality using Java-based plugins (e.g., 2FA, branding, analytics, etc.).

  • Resource Management

    • Organize connections into groups.

    • Assign permissions to users for fine-grained access control.

Configuration

  • A Ubuntu server with docker for providing containers run-time environment.

  • Allow port 8080 in IPtables/ufw host based firewall.

  • Use the following docker compose file to automate the process of setting up guacd, guacamole, and MariaDB.

    • guacd (Guacamole Daemon)

      • Role: Handles protocol-level communication (RDP, VNC, SSH).

      • Configuration:

        • Uses the official guacamole/guacd image.

        • Connected to internal Docker network guacnetwork_compose.

        • Always restarts if stopped (restart: always).

    • mariadb (Database)

      • Role: Stores user credentials, connection configurations, history, etc.

      • Configuration:

        • Sets root password and initializes:

          • guacamole_db database.

          • Credentials (optional user: guacamole_user, but currently unused).

        • Mounts initdb volume to run initial DB schema scripts.

        • Connected to guacnetwork_compose.

    • guacamole (Web UI)

      • Role: Web interface users log into to access remote desktops.

      • Configuration:

        • Environment variables set:

          • DB connection (MYSQL_*)

          • GUACD_HOSTNAME to link with guacd

        • Exposes port 8080 on host for browser access.

        • Mounts the initdb volume to apply the Guacamole DB schema.

        • Connected to guacnetwork_compose.

    • initdb (Volume)

      • Role: Provides initial SQL schema to the database.

      • Mounts To:

        • MariaDB: /docker-entrypoint-initdb.d (initializes DB)

        • Guacamole: /opt/guacamole/extensions/… (schema for JDBC auth)

  • Here is the link for docker-compose.yml

  • After setting up the containerized environment, verify you are able to access Guacamole via browser at ubuntu.ip:8080

    • default username - guacadmin

    • default password - guacadmin

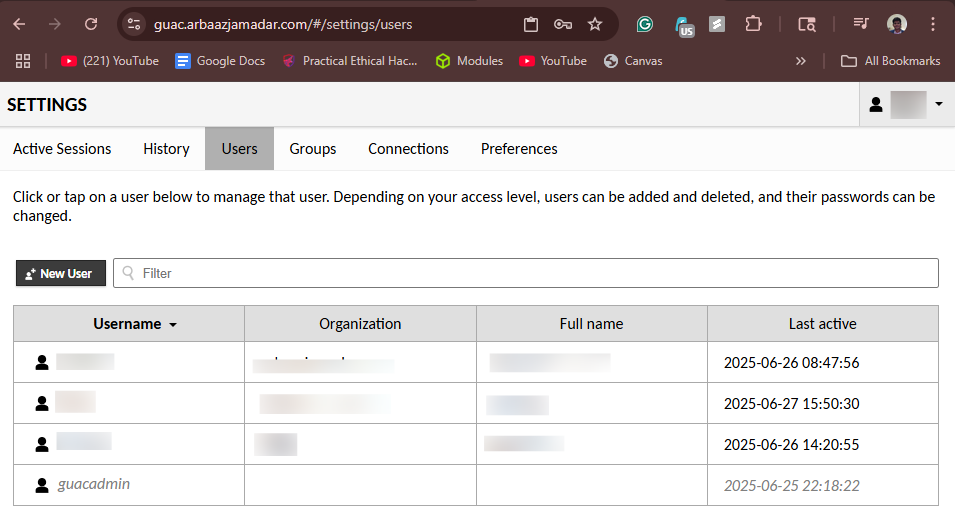

  • Log in scan and configure TOTP and change guacadmin’s password. Go to settings and create a new user with admin access that can add new connections and users.

  • Test if you are able to log in as the new user before you disable the guacadmin user.

user

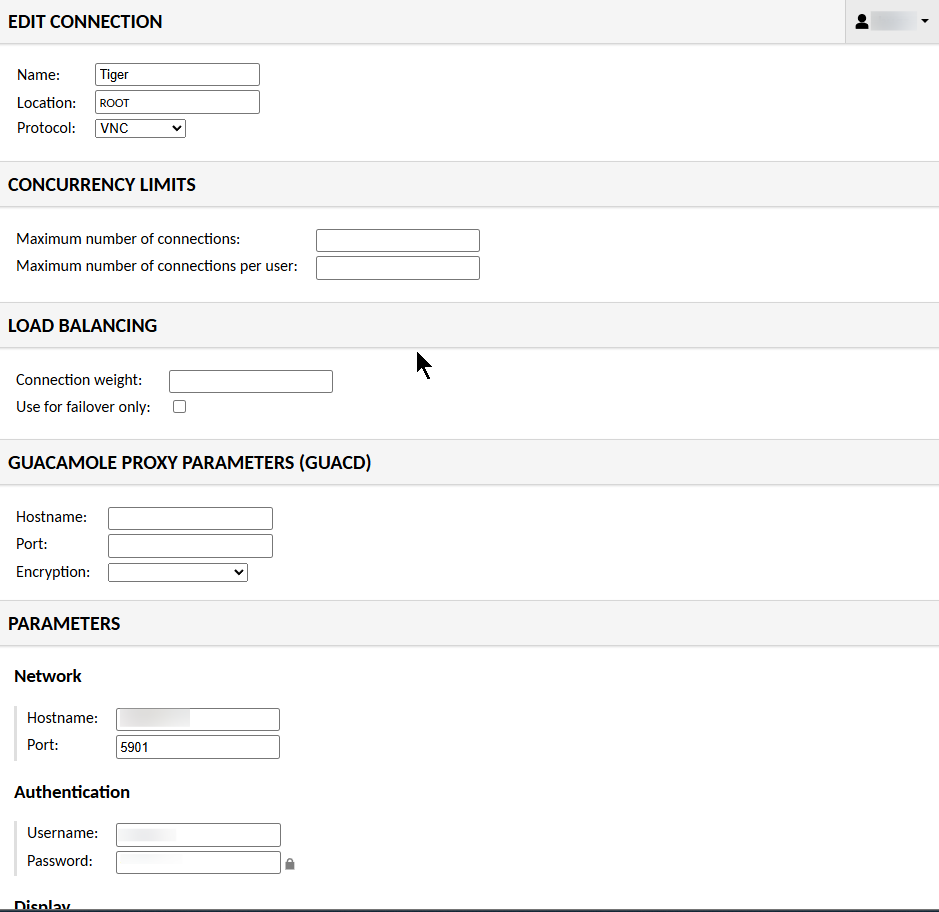

  • After verifying the user login, create a new connection:

    • Name your connection and select the protocol to connect to the instance.

    • Under parameters, the network hostname should be your instance’s IP address and the port that is exposed for remote login.

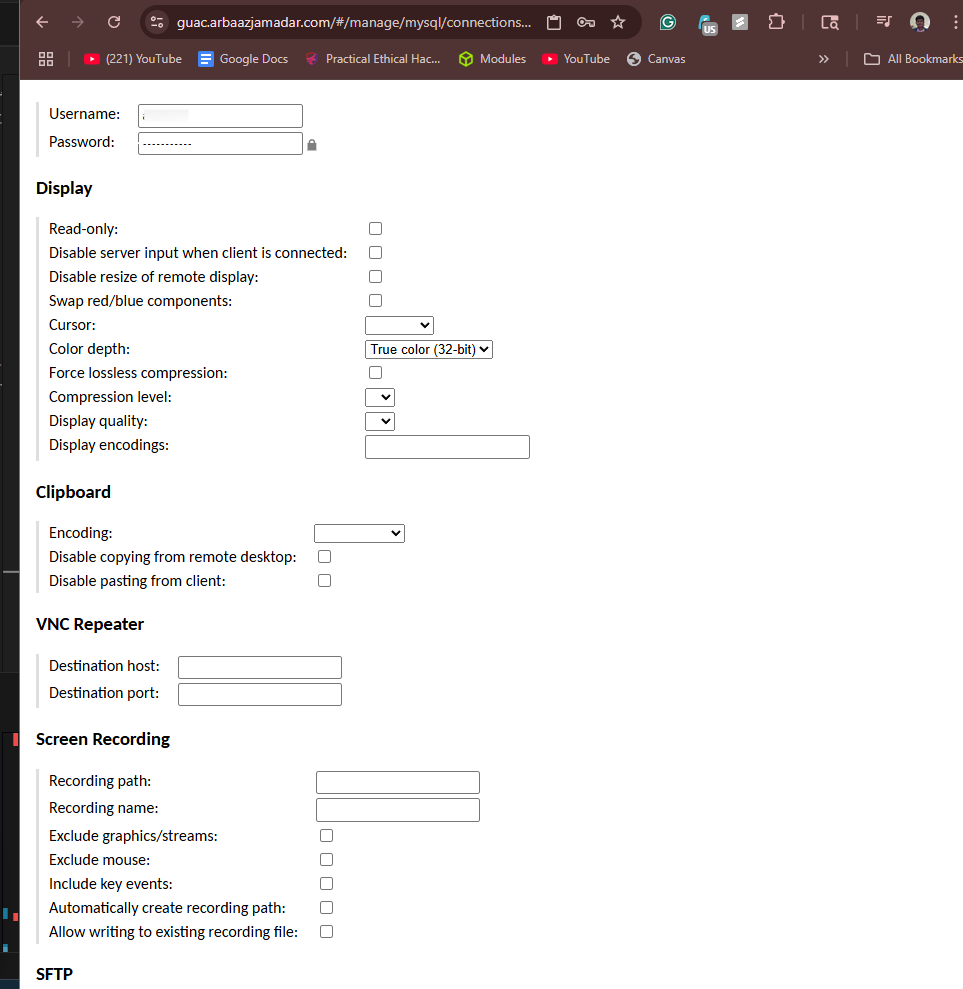

    • Under the authentication block, in the Username field, enter the username of the instance user that is configured for remote login. In this case, user1, and the password will be the one that was set up using the vncpasswd command, which is makeshiftpassword.

connection

connection1

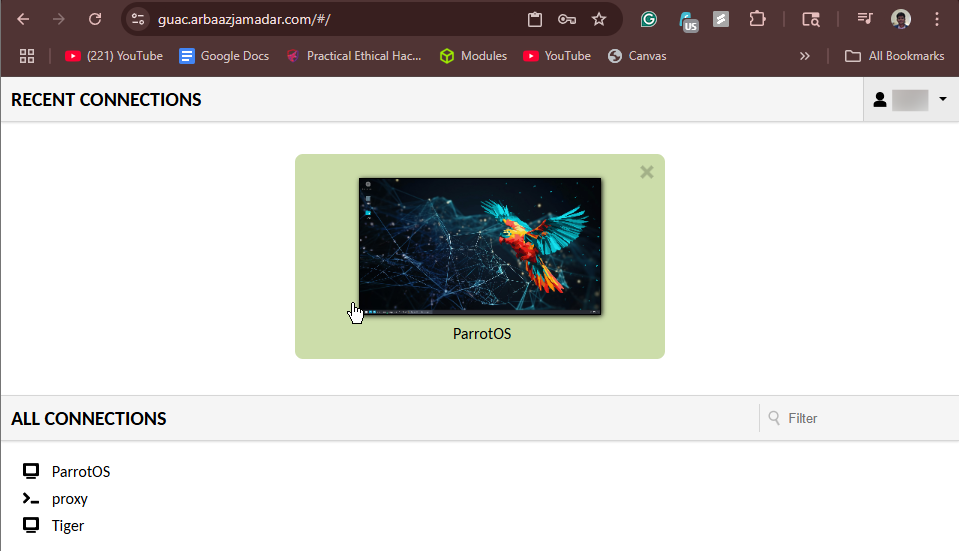

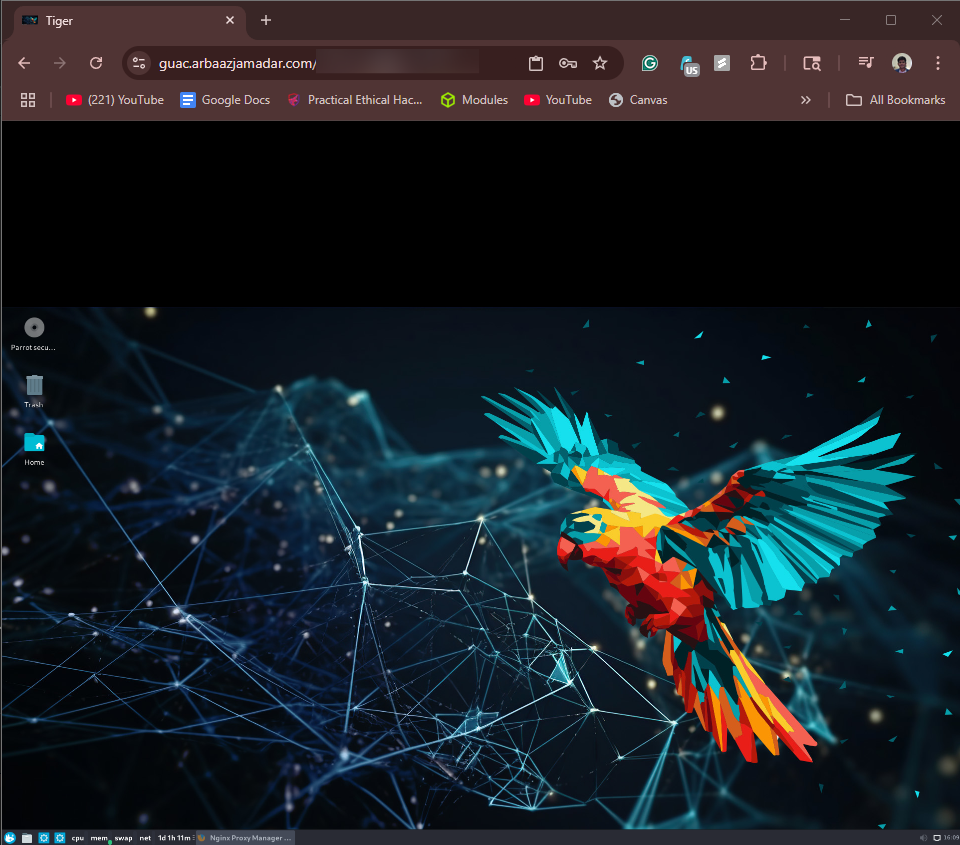

  • After setting up connections, go to the homepage and double-click on the new connection, in this case, Tiger. You should be able to interact with your machine via the browser window.

homepage

window

  • Voila! Guacamole has been set up successfully, and now you are able to access your machines securely from anywhere without the need for a VPN.

Optional:

  • In case you want to customize your sign-in page, user page, or any other pages of your application, you can perform the following steps:

    • Get the Guacamole.war file from guacaomole/guacamole container:
        docker cp guacamole/guacamole:/opt/guacamole/webapp .
    #In case of any errors:
    docker run -d -name guacamole guacamole/guacamole
    docker cp guacamole:/opt/guacamole/webapp .

  • This will output the webapp directory in your current directory.

  • Extract the contents from the guacamole.war file present inside webapp. You will need JDK (Java Development Kit) for the following steps:

        mkdir guacamole_contents
    cd guacamole_contents
    jar -xf ../guacamole.war

  • If you want to change the profile image and favicon, you will need to replace guac-tricolor.svg for the profile and logo-64.png and logo-144.png for the favicon.

  • In case you want to change the content of the website, you can modify it from transliteration/en.json.

  • Once the configurations are finalized, re-zip the contents:

        jar -cf guacamole.war -C guacamole_contents .

  • Now, create a custom container image with these modifications:

        FROM guacamole/guacamole

    COPY ./guacamole.war /opt/guacamole/webapp

    EXPOSE 8080
        docker build -t repo_name/guacamole .

    docker push repo_name/guacamole

  • Update the guacamole service’s image name with repo_name/guacamole and recompose the deployment. The changes will be visible when the cache expires.

Docker-compose file:

⚠️
Portado is still in active development. Questions/Suggestions: open an issue
